Equipment

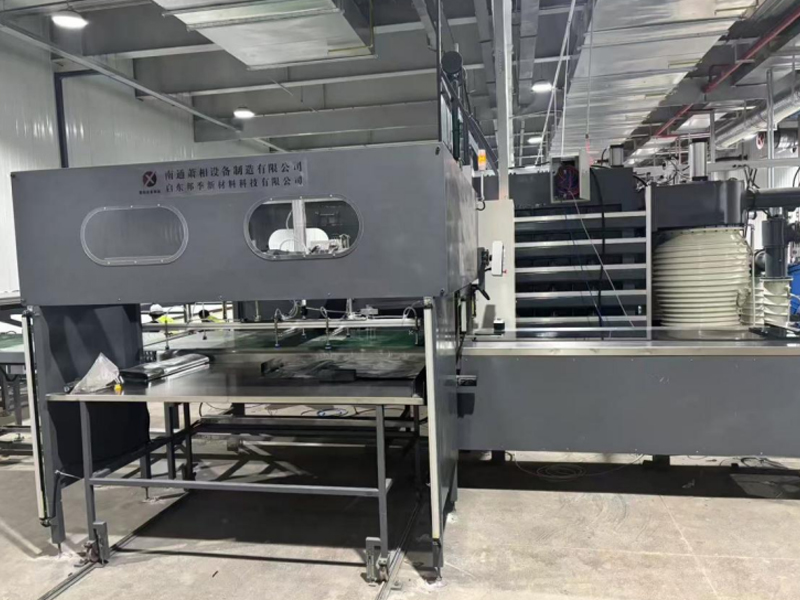

Die-Cutting Machine
Function:
Used for the continuous die-cutting and single-step forming of core materials.
Technical Specifications:
The equipment utilizes a continuous material feeding system for die-cutting. It features a stamping force of 120 tons and a maximum die-cutting size of 1000 × 2000 mm; the production cycle time is 18 seconds per cycle.

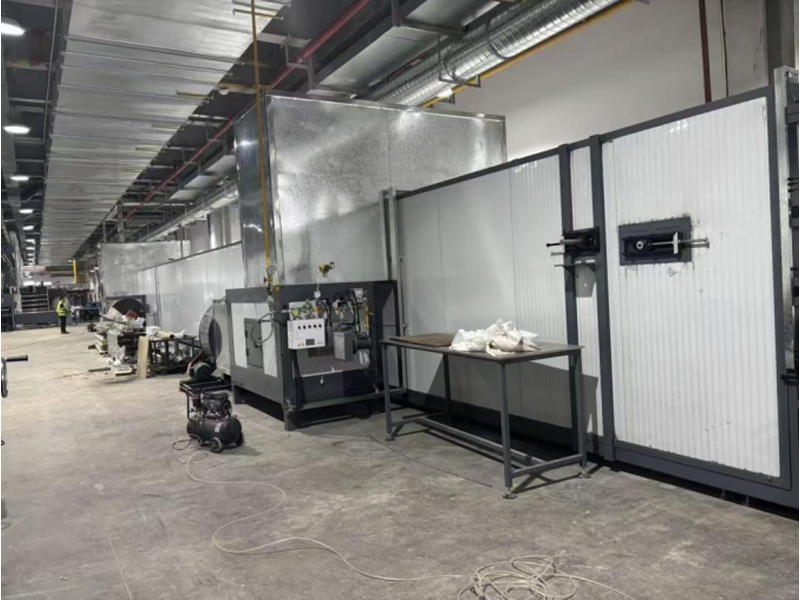

Three-Tier Drying Tunnel
Function:
Drying moisture from core materials
Technical Specifications:
Total equipment length (footprint): 36 meters,
Conveyor system features a three-tier circulating design,
effectively providing a 90-meter drying path within the 36-meter footprint.
Drying temperature: 100–250°C; Width: 1800 mm.

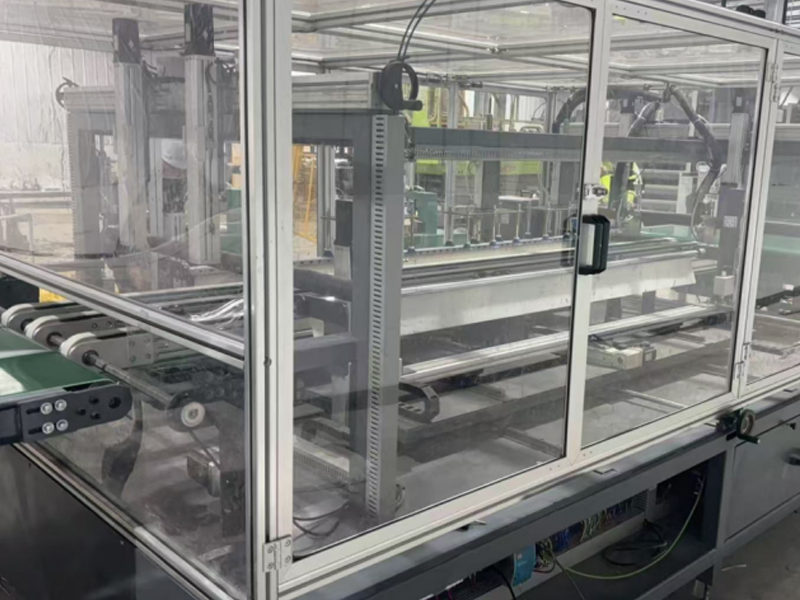

Bagging Machine
Function:
Used for bagging core materials.
Technical Specifications:
Accommodates core material dimensions up to 1900 x 800 x 100 mm. Product pallets and parameter settings are determined based on specific dimensions. Production cycle time: 20 seconds per cycle.

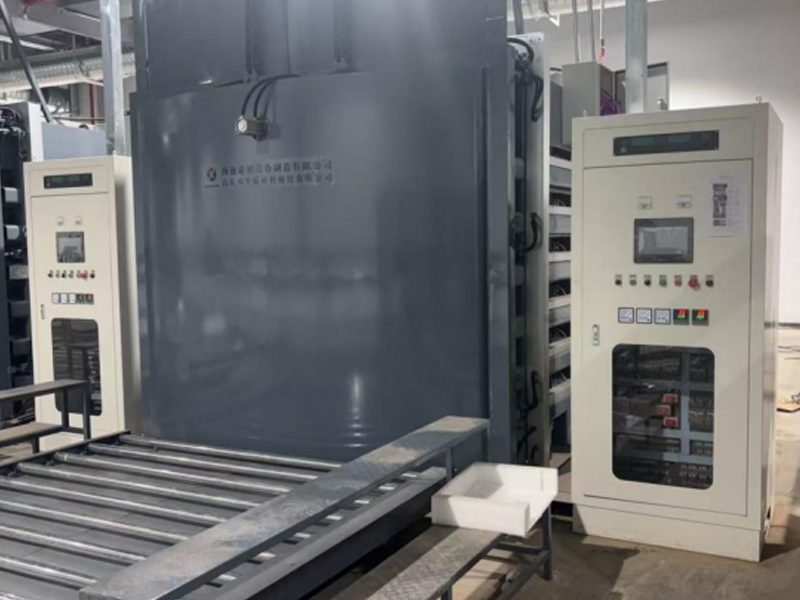

Vacuum Packaging Machine
Function:
Used for the vacuum packaging of core materials.
Technical Parameters:
Effective sealing width up to 1850 mm; sealing element utilizes a 15–20 mm wide nickel-chromium alloy heating wire; chamber static pressure rise rate ≤ 5 Pa/h.

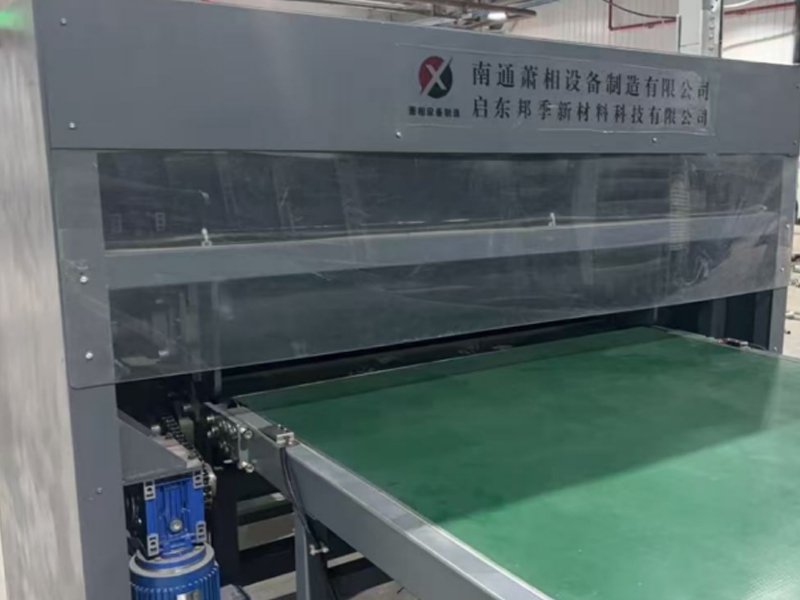

Roller Press
Function:
Used to groove and flatten products after bag sealing.
Technical Specifications:
The grooving rollers are interchangeable to accommodate specific product requirements. The flattening section is equipped with four rollers made of A3 steel with a 10mm rubber coating; they feature a diameter of 180mm and a width of 1200mm, capable of handling a pressing thickness exceeding 35mm.
Long-Side Folding Machine
Function:
Automatically applies adhesive and folds the long edge of the product after bag sealing.
Technical Specifications:
Product range 2000 × 1000 × 50 mm; Equipment capacity: ≤ 15 seconds/piece.

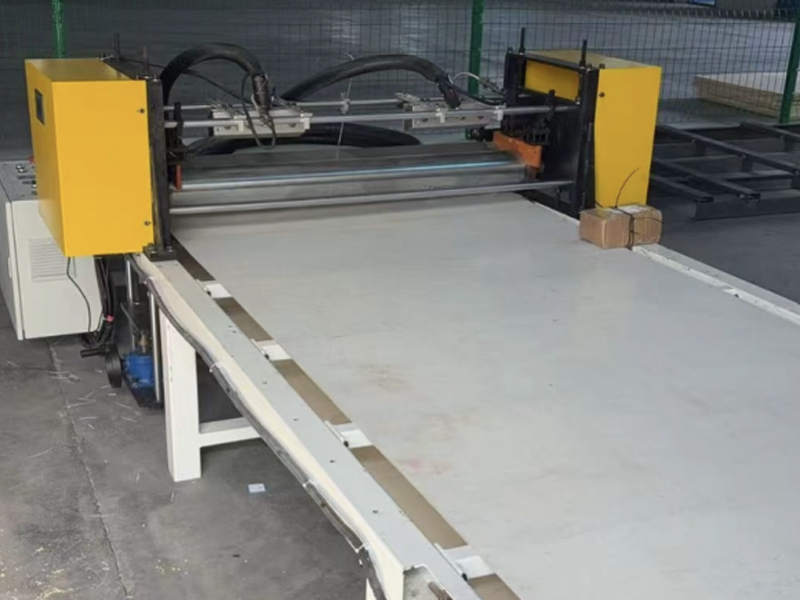

Hot-Melt Adhesive Applicator
Function:
Applies hot-melt adhesive to products after bag sealing.
Technical Specifications:
Adhesive application rate 100–220 g/m²; production speed 0–20 m/min.

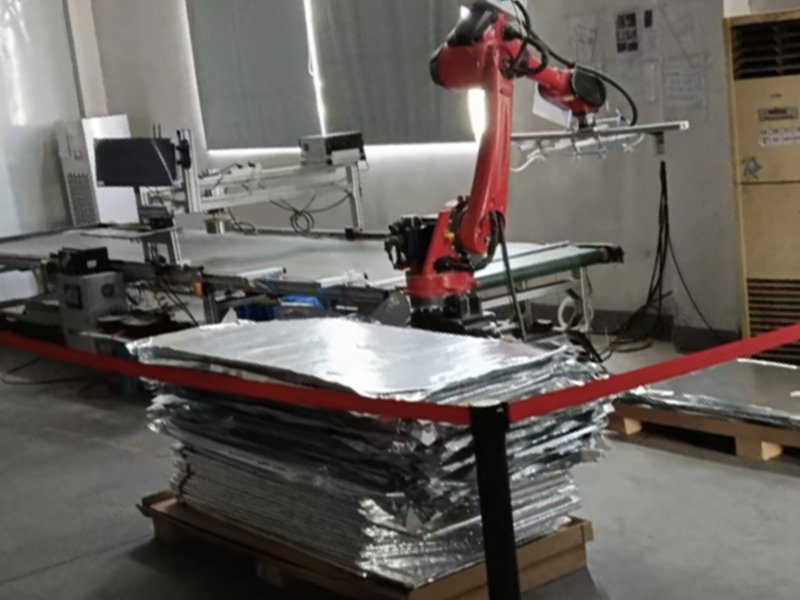

Automated Rapid Inspection Line
Function:
Used for automated, full-scale inspection of finished products.
Technical Specifications:
Inspection time 10s; inspection accuracy ±0.2mW.
